Description

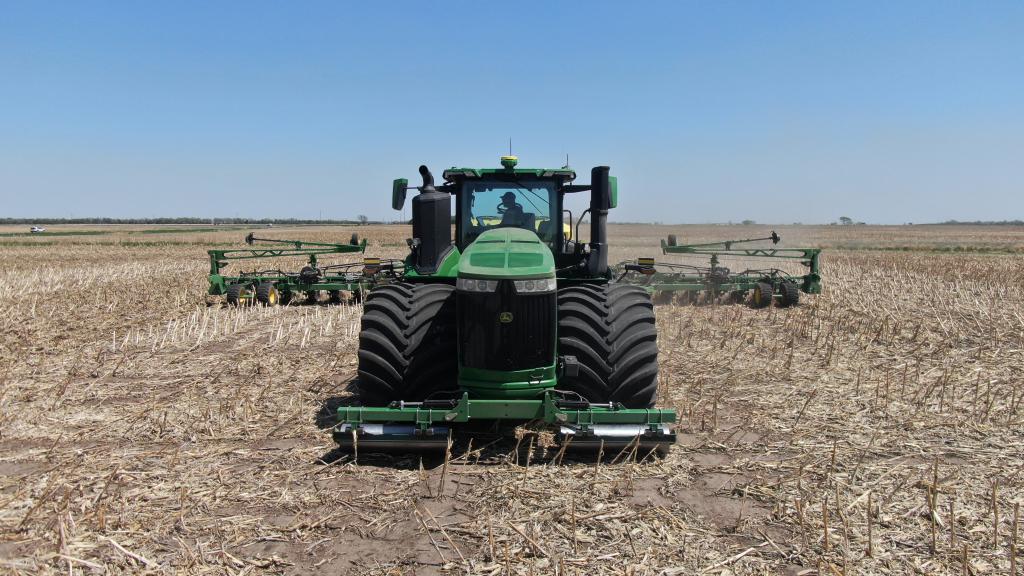

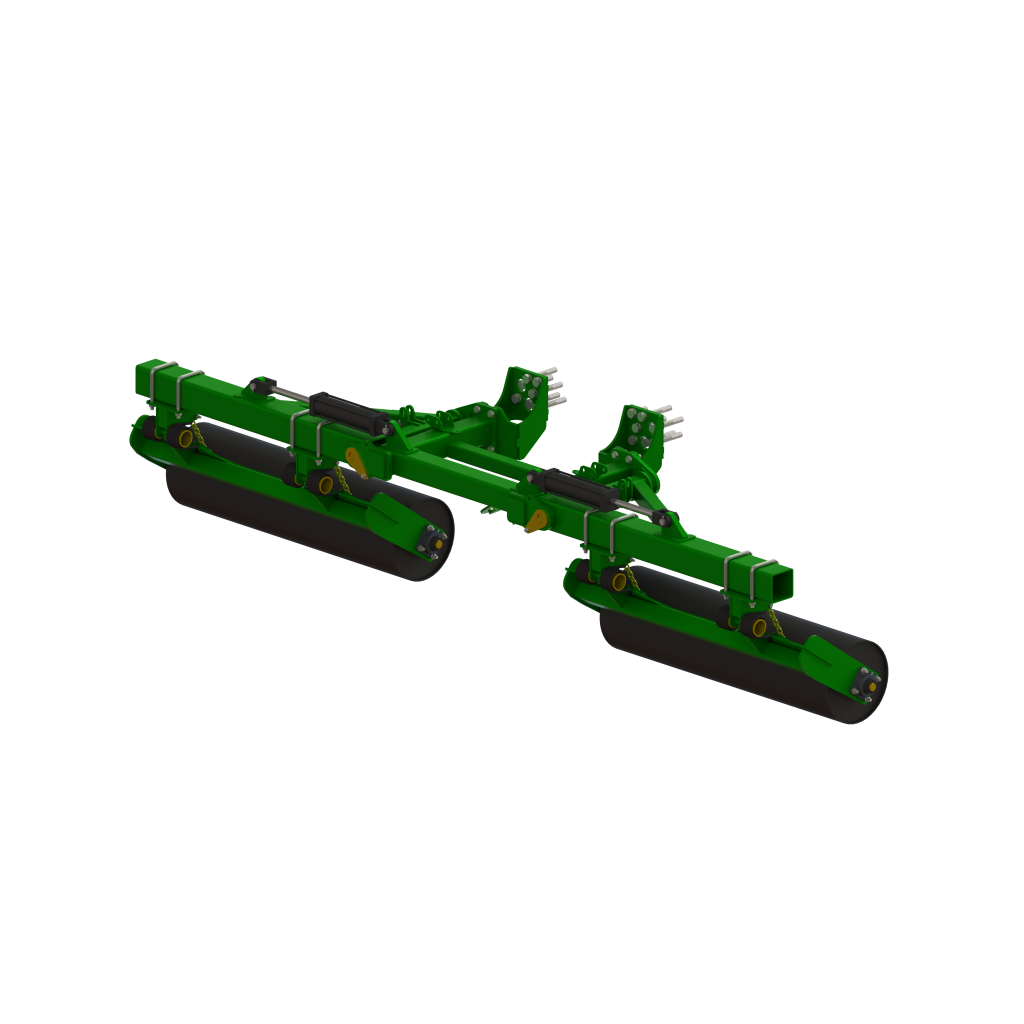

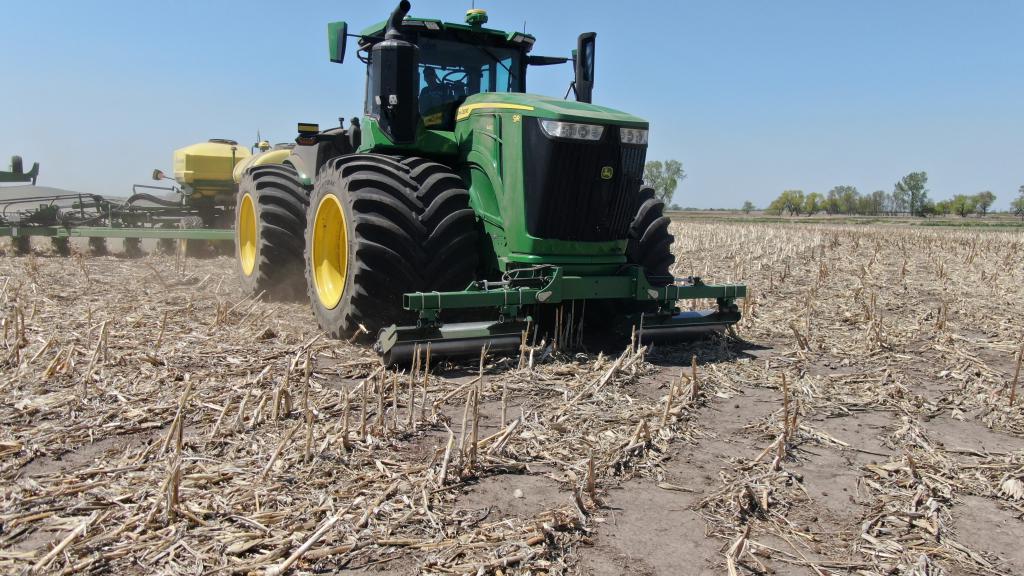

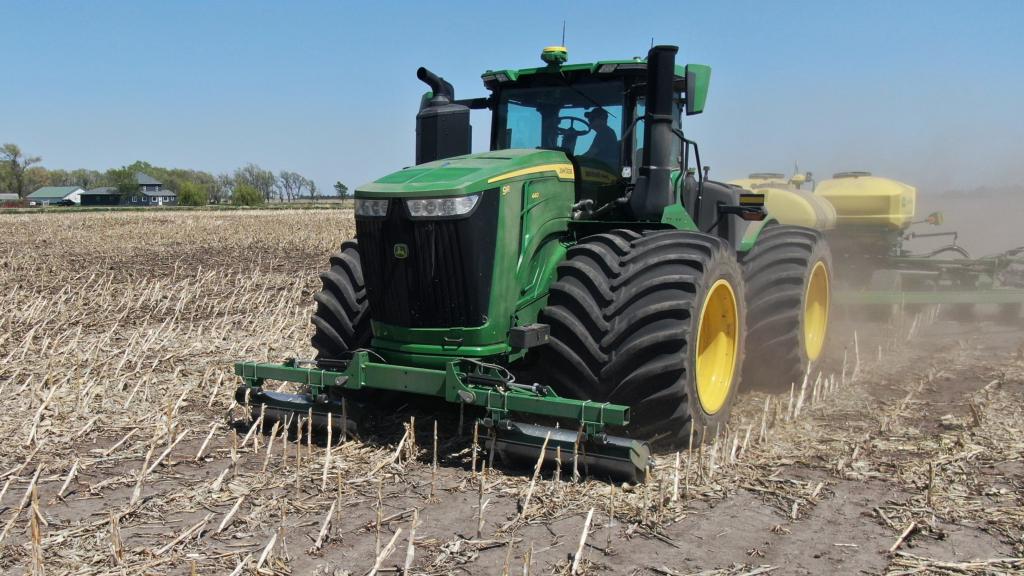

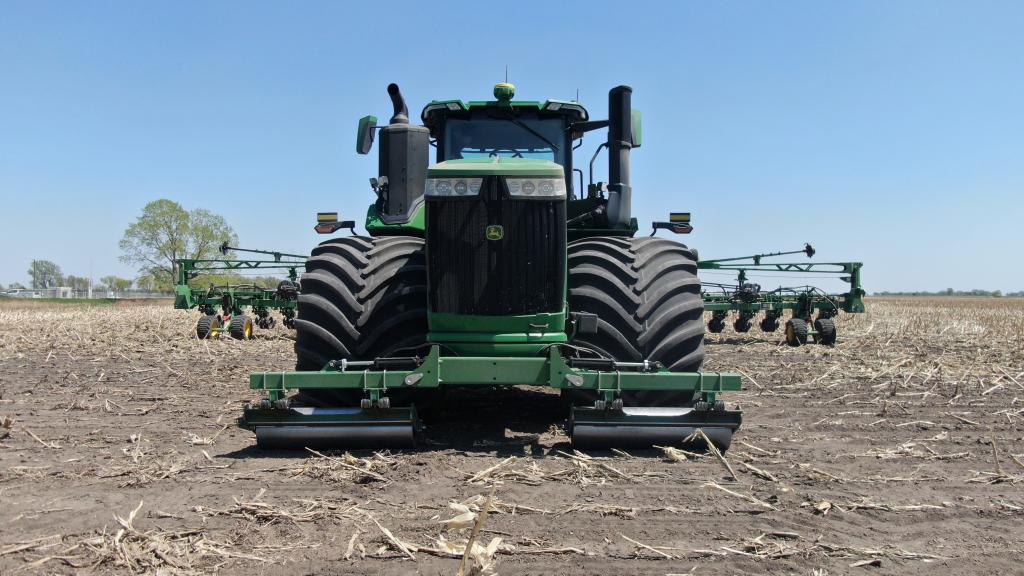

Extend the life of your tractor tires with Lankota’s Stalk Roller system for 2022+ John Deere 9R & 9RX Series tractors with the new front weights. The 52-inch wide roller will greatly lessen tire damage done by any crop stalk. The 14-inch diameter rollers crush sharp and abrasive crop residue in front of the tractor tires. The system folds and unfolds hydraulically from the cab. If available, use a separate hyd. remote for these functions or tie them directly in with your implement lift.
For model year 2015+ 9R series tractors WITHOUT front weights, order the LANSRJD9R5215
For model year 2015+ 9RX series tractors WITHOUT front weights, order the LANSRJD9RX52
Use the following tables to determine which kit number to order, based on your tractor series, tire or tracks size, and configuration:
2021 & older John Deere® 4WD Wheeled Tractor Stalk Rollers
Tire Configuration
2015 – 2021 9R Series
2014 & Older 9R Series
9030 Series
Duals
620mm to 800mm
Triples
480mm & 520mm
LANSRJD9R7415
LANSRJD9R7412
LANSRJD903074
Singles
800mm
Duals
480mm & 520MM
LANSRJD9R5215
LANSRJD9R5212
LANSRJD903052
• All kits work with or without front weights & with or without front weight bracket
2022 & newer John Deere® 9R Series 4WD Wheeled Tractor Stalk Rollers
Tire Configuration
WITHOUT front weights
WITH front weights
Duals
620mm to 800mm
Triples
480mm & 520mm
LANSRJD9R7415
LANSRJD9R7422
Singles
800mm
Duals
480mm & 520MM
LANSRJD9R5215
LANSRJD9R5222
John Deere® 9RX Series Tracked Tractor Stalk Rollers
2021 & Older WITHOUT front weights
2022+ WITHOUT front weights
2022+ WITH front weights
LANSRJD9RX52 or
LANSRJD9RX74
LANSRJD9RX52 or
LANSRJD9RX74
LANSRJD9R5222 or
LANSRJD9R7422
Please note:
52 inch wide rollers
Part numbers containing “52” have 52 inch wide rollers
Overall tread width cannot exceed 157 inches
74 inch wide rollers
Part numbers containing “74” have 74 inch wide rollers
Overall tread width cannot exceed 206 inches
