What is a FiberCut?

The FiberCut is a multi-height, pull-behind sickle mower that’s hydraulically driven and developed exclusively towards hemp fiber. This unit’s modular design is built to allow an operator to add, remove, and adjust the cutting arms of the machine. Because the FiberCut can operate at high speeds up to 12 mph, its efficiency is significantly higher compared to conventional and expensive forage harvesters and disc mines. With particular field circumstances, producers are able to perform at their peak. Components, parts, and supplies for this unit are carried by Bish Enterprises and at your local dealership located within the United States. All hemp harvesting equipment developed by Bish Enterprises can be viewed here.

Pull Behind Multi-Height Sickle Mower for Hemp Fiber

Cut hemp stalks into 24"-39" sections for easy​…

Retting
Lorem Ipsum is simply dumy text of the printing typesetting industry lorem ipsum.
Baling
Lorem Ipsum is simply dumy text of the printing typesetting industry lorem ipsum.
Bale unwinding​
Lorem Ipsum is simply dumy text of the printing typesetting industry lorem ipsum.
Decortication​
Lorem Ipsum is simply dumy text of the printing typesetting industry lorem ipsum.

Features

  • Can use 4,3,2,1 bar(s) at a time
  • Forward folding arms
  • Manual counterbalance
  • CAT 3,4 point attachment (with option CAT 5 compatibility)
  • Bumpered mounting sheath
  • Can be configured in 4,3,2, or 1 arm(s); as well as 12’, 10’, 8’, or 6’ arm lengths

Benefits

  • Adaptability to various field conditions
  • Compact and safe road travel
  • Better handle with uneven terrain during harvest/transport
  • Increased versatility and adaptability
  • Enhanced sickle protection when closed
  • Easy retting, baling, bale unwinding, and decortication

Extras

Available Models Include​
​Optional Items Available

412, 410, 408, 406
312, 310, 308, 306
212, 210, 208, 206
112, 110, 108, 106

Tow Package

  • Special Hauling Hitch
  • DOT Compliant Lighting
  • Braking System

Hitch Receiver

Electric Jack

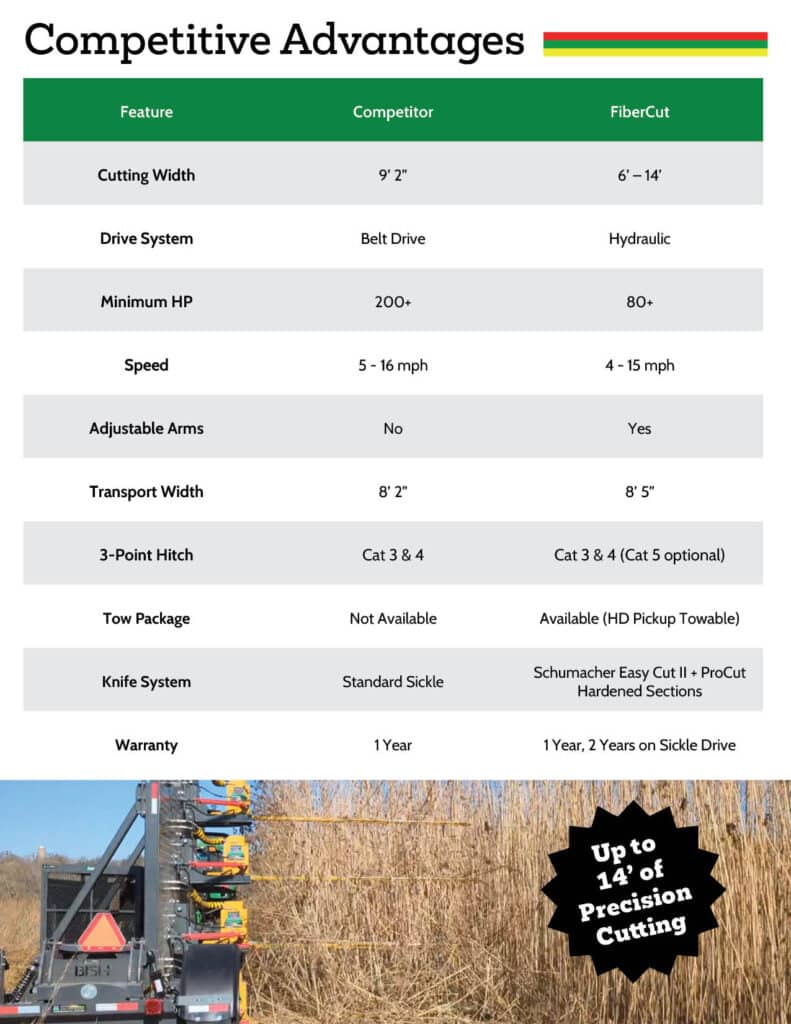

Feature
Fibercut
Competitor

Dimentional Details
Transport Width
8' 5"
8' 2"
Machine Transport Height
162" - Tall Wall 131" - Medium Wall / 82" - Short Wall
96"
Cutting Height
Variable - 24"+
24"
Minimum Cut Height
6"+
6"+
Maximum Cut Height
87" (Medium Wall) 105" - 123" (Tall Wall)
102"
Cutting Width
6', 8', 10', 11', 12', 15'
9' 2"
Knife Spacing Fore/Aft
Variable - 15"+ (24" standard configuration)
24"
Weight
13,400 lbs.
9,600 lbs.
Wheels
425/65-R22.5
520/550-17

3 Point Details
3 Point Assembly
Independent Lateral Tilt + Rigid Lockdown
Rigid
3 Point Category
Cat 3 & Cat 4 Configuration - Standard Cat 5 with aftermarket adapters
Cat 3 Cat 4 with aftermarket adapters

Knife Details
Knifedrive Power System
On-board Hydraulic System (PTO Driven @ 1000rpm)
Mechanical (Belt Drive)
Knifedrive
Schumacher® Planetary Drive
Wobble Box
Cutting Knives (Arm Qty)
4, 3, 2 Variable
4
Cutting Components
Schumacher® Easy Cut II®
Standard Sickle Sections with Guards

Performance Estimates
Working Speed
4mph - 15mph Top speed may vary based on field conditions and plant density
5mph - 16mph

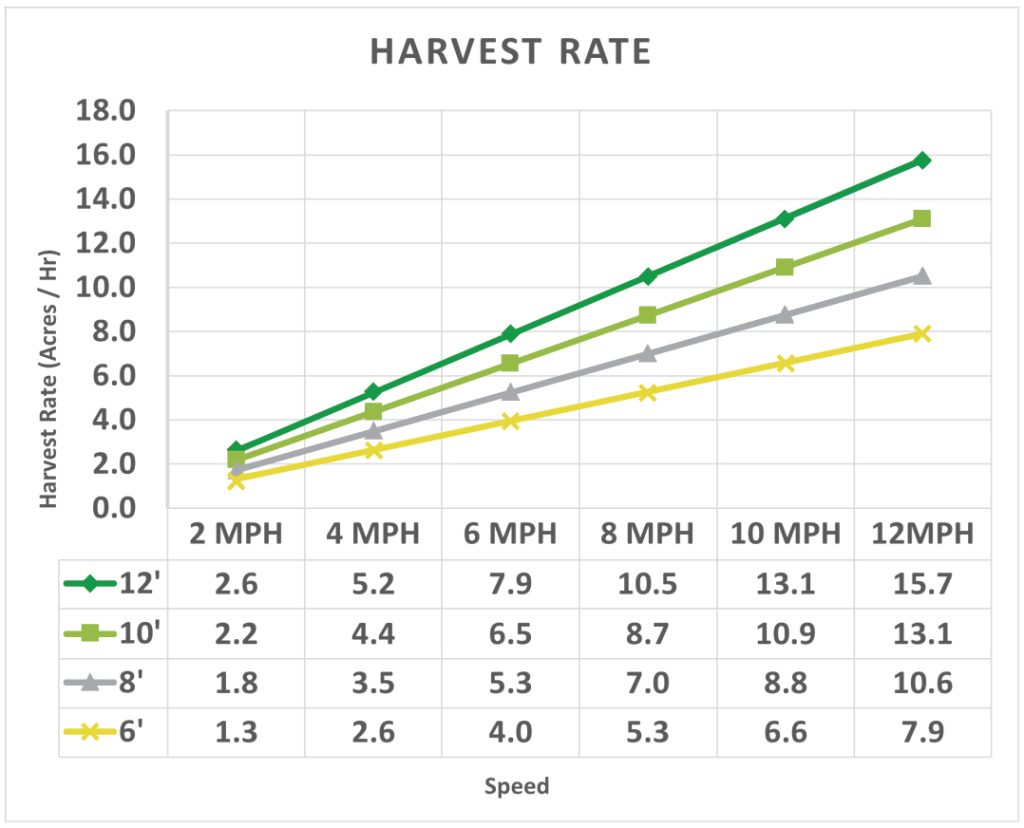

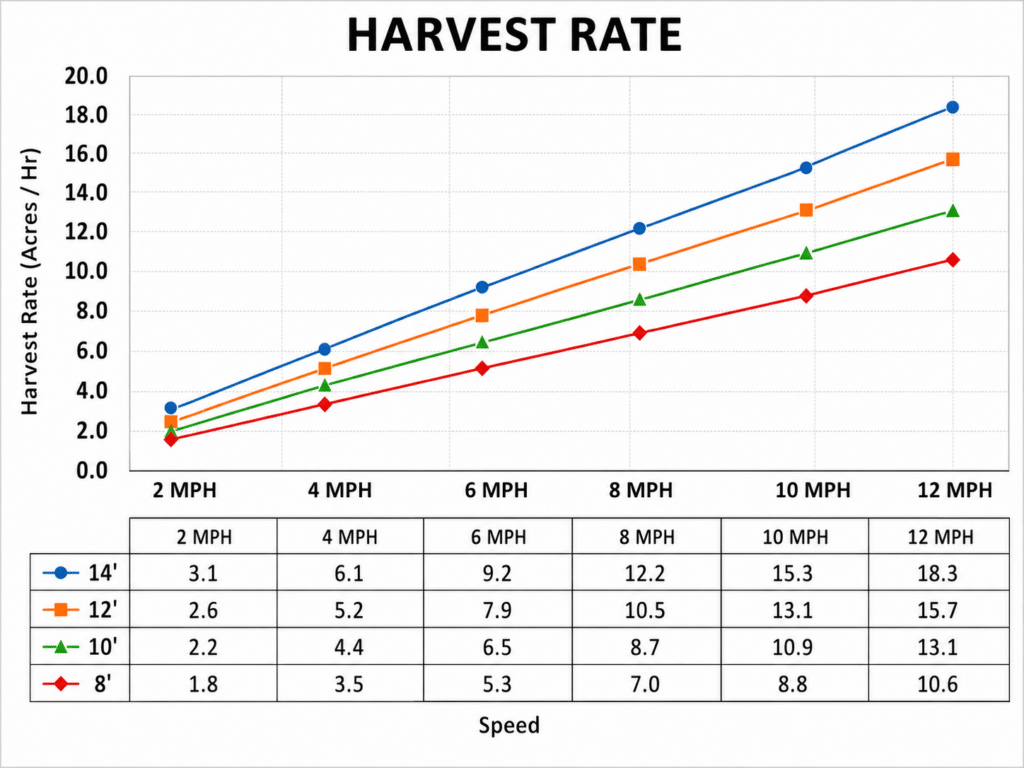

Harvest Rate
6.5 Acres/hr - 10' knife - (@ 6mph) 7.9 Acres/hr -12' knife - (@ 6mph)
5.9 Acres/hr (@6mph)
Horsepower Required
140+
200+

Misc Details / Requirements

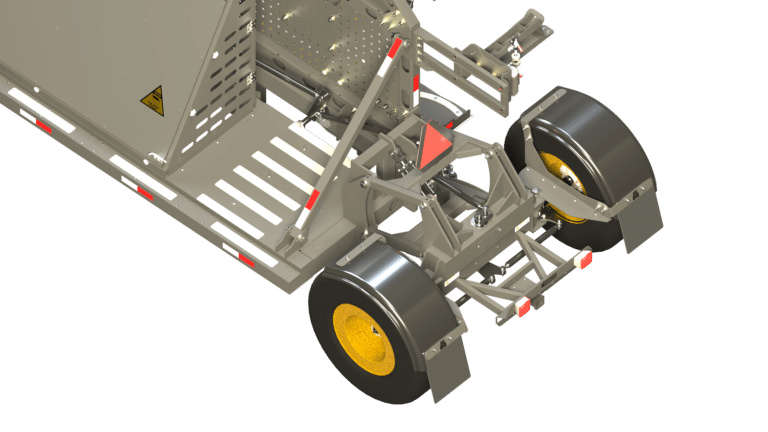

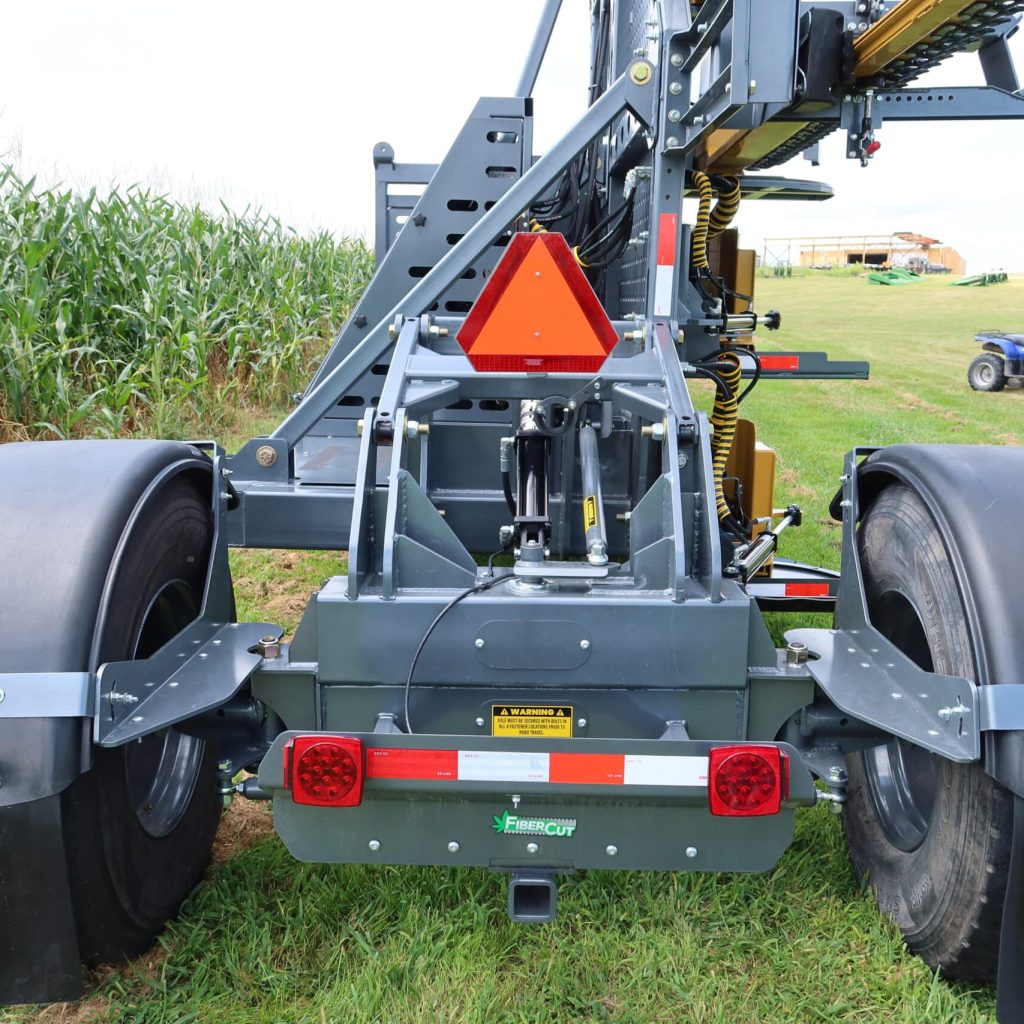

Rear Axle

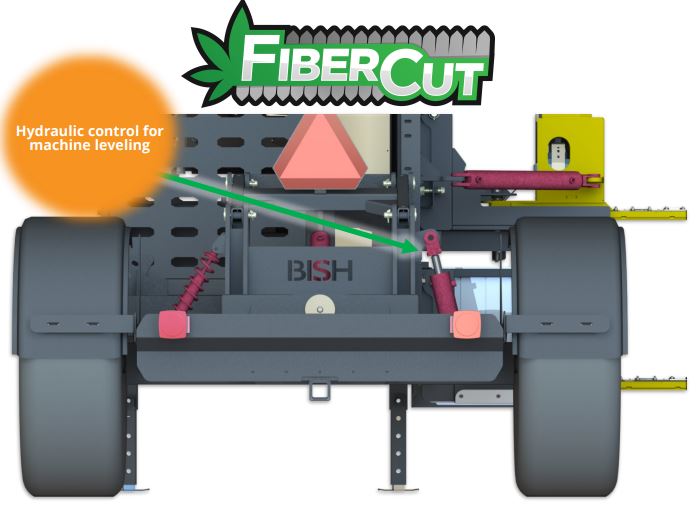

Independent Lateral Tilt + Hydraulic Pitch Positioning
Rigid
Hydraulic Banks Required on Tractor
3
1

Optional Components
Tow Package
Optional (Includes tail-lights & front and rear brakes)
Not Available
Rear Hitch Reciever
Standard (2-1/2")
Not Available
Electric Assist Jackstands
Optional
Not Available

Specs

Fibercut

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Transport Width:8′ 5″

Machine Transport Height: 162″ – Tall Wall 131″ – Medium Wall / 82″ – Short Wall

Cutting Height:Variable – 24″+

Minimum Cut Height:6″+

Maximum Cut Height: 87″ (Medium Wall) 105″ – 123″ (Tall Wall)

Cutting Width: 6′, 8′, 10′, 11′, 12′, 15′

Knife Spacing Fore/Aft: Variable – 15″+ (24″ standard configuration)

Weight: 13,400 lbs. Wheels: 425/65-R22.5

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

3 Point Assembly: Independent Lateral Tilt + Rigid Lockdown

3 Point Category: Cat 3 & Cat 4 Configuration – Standard Cat 5 with aftermarket adapters

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Knifedrive Power System:On-board Hydraulic System (PTO Driven @ 1000rpm)

Knifedrive:Schumacher® Planetary Drive

Cutting Knives (Arm Qty):4, 3, 2 Variable

Cutting Components:Schumacher® Easy Cut II®

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Working Speed: 4mph – 15mph Top speed may vary based on field conditions and plant density

Harvest Rate: 6.5 Acres/hr – 10′ knife – (@ 6mph) 7.9 Acres/hr -12′ knife – (@ 6mph)

Horsepower Required: 140+

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Rear Axle: Independent Lateral Tilt + Hydraulic Pitch Positioning

Hydraulic Banks Required on Tractor: 3

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Tow Package: Optional (Includes tail-lights & front and rear brakes)

Rear Hitch Reciever: Standard (2-1/2″)

Electric Assist Jackstands: Optional
Competitor

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Transport Width:8′ 2″

Machine Transport Height: 96″

Cutting Height:24″

Minimum Cut Height: 6″+

Maximum Cut Height: 102″

Cutting Width: 9′ 2″

Knife Spacing Fore/Aft: 24″

Weight: 9,600lbs.

Wheels: 520/550-17

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

3 Point Assembly: Rigid

3 Point Category: Cat 3 cat 4 with aftermarketadapter

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Knifedrive Power System:Mechanical(Belt Drive)

Knifedrive:Wobble Box

Cutting Knives (Arm Qty):4

Cutting Components:Standard Sickle Section With Guards

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Working Speed: 5mph – 16mph

Harvest Rate: 5.9 Acres/hr (@6mph)

Horsepower Required: 200+

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Rear Axle: Rigid

Hydraulic Banks Required on Tractor: 1

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Tow Package: Not Available

Rear Hitch Reciever: Not Available

Electric Assist Jackstands: Not Available

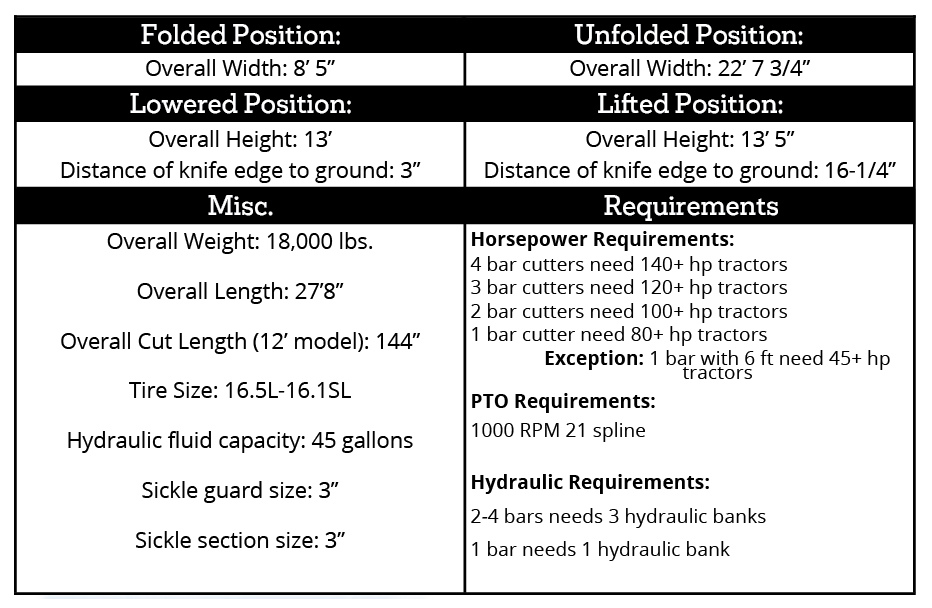

Specs

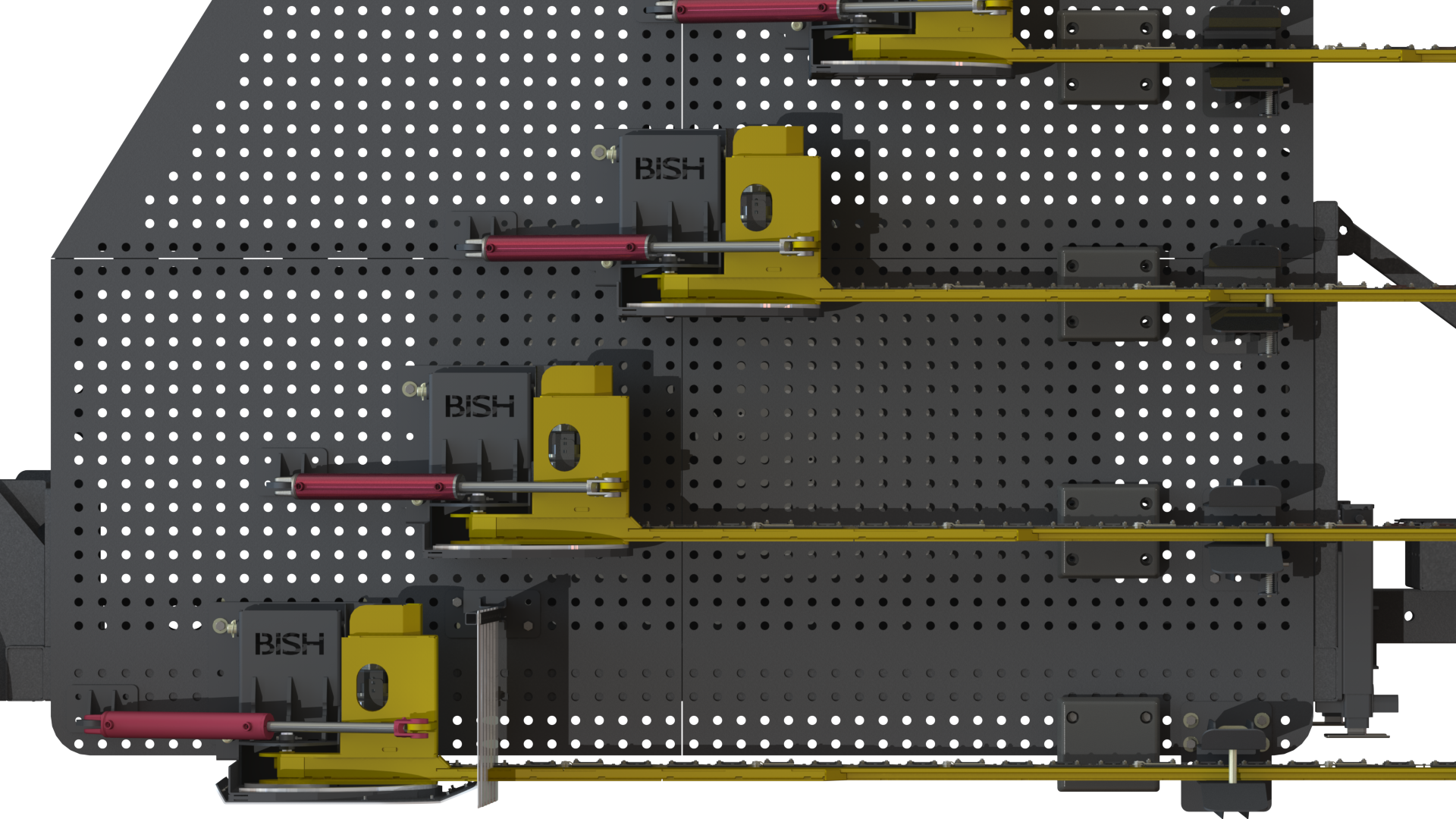

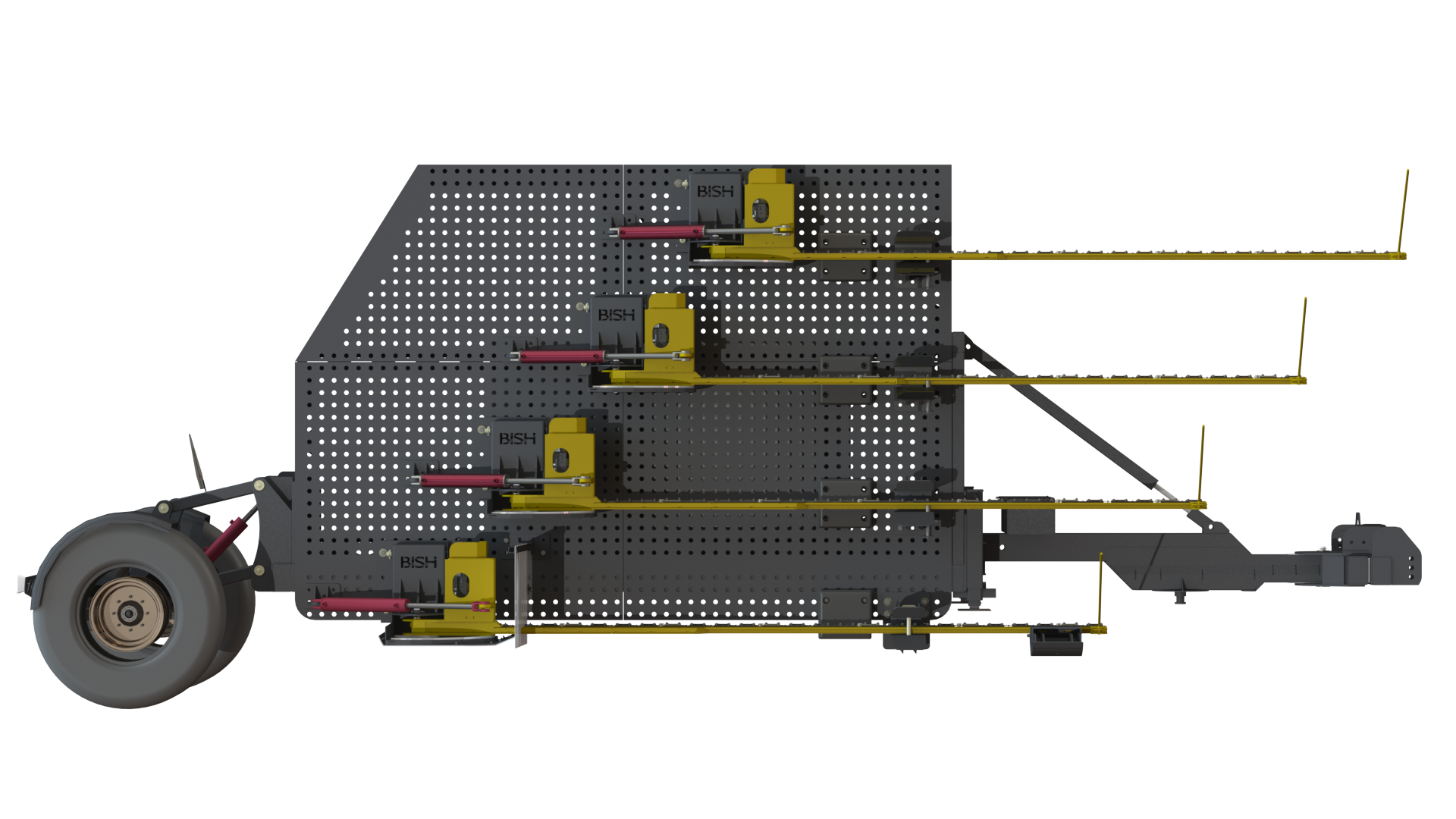

Folded

   Overall Width: 8’ 5”

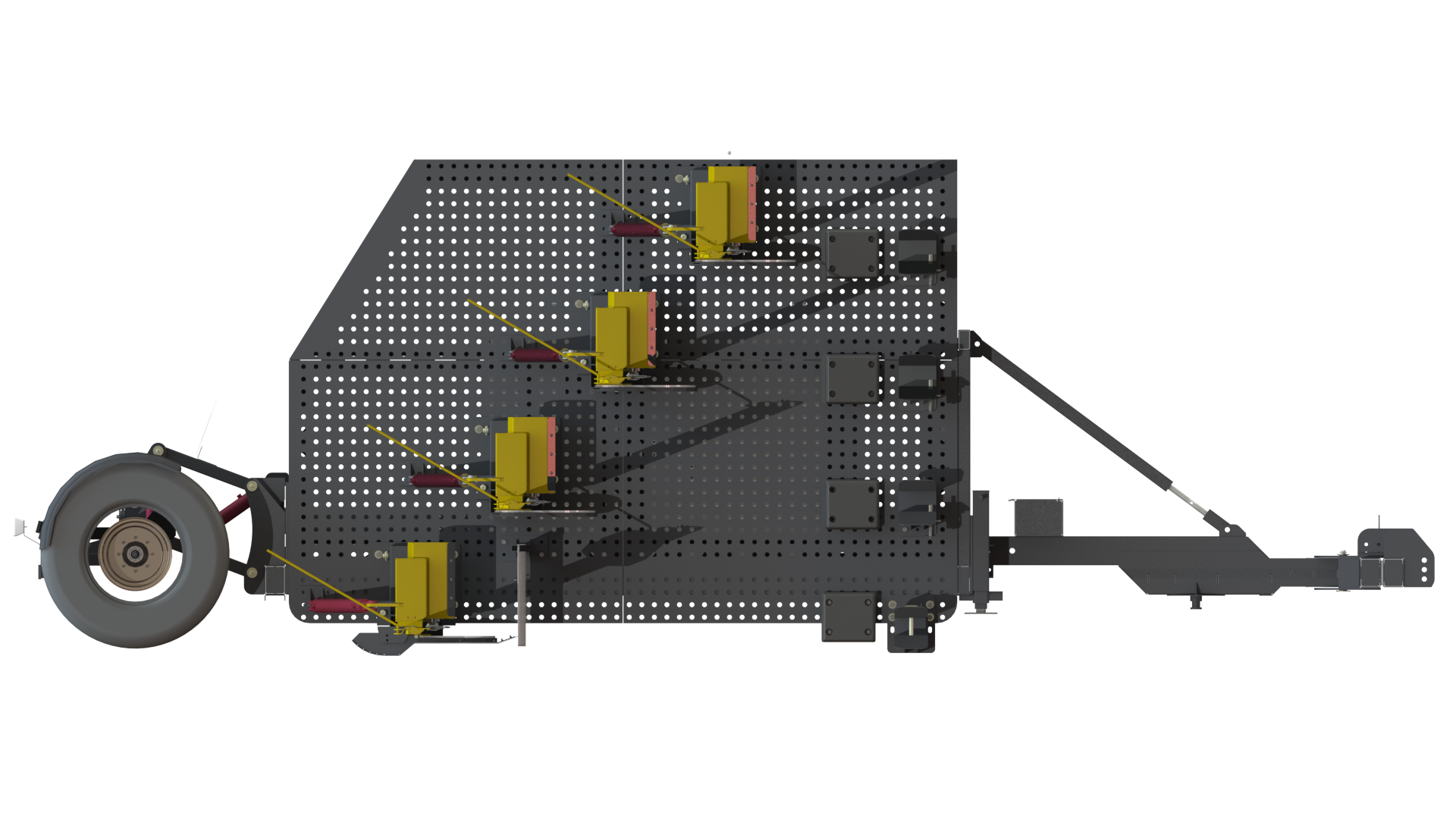

Lowered Position
Overall Height: 11’-3 3/8”
Distance of knife edge to ground: 3”

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

Overall Weight: 11150 lbs.

Overall Length: 27’ 8”

Distance range between knife edges: 27”-36”

Horizontal (Fore Aft Range): 0”-15”

Overall Cut Length (12’ model): 12’-2 3/4”

Tire Size: 16.5L-16.1SL

Hydraulic fluid capacity: 60 gallons

Sickle guard size: 2-3/4”

Sickle section size: 3”

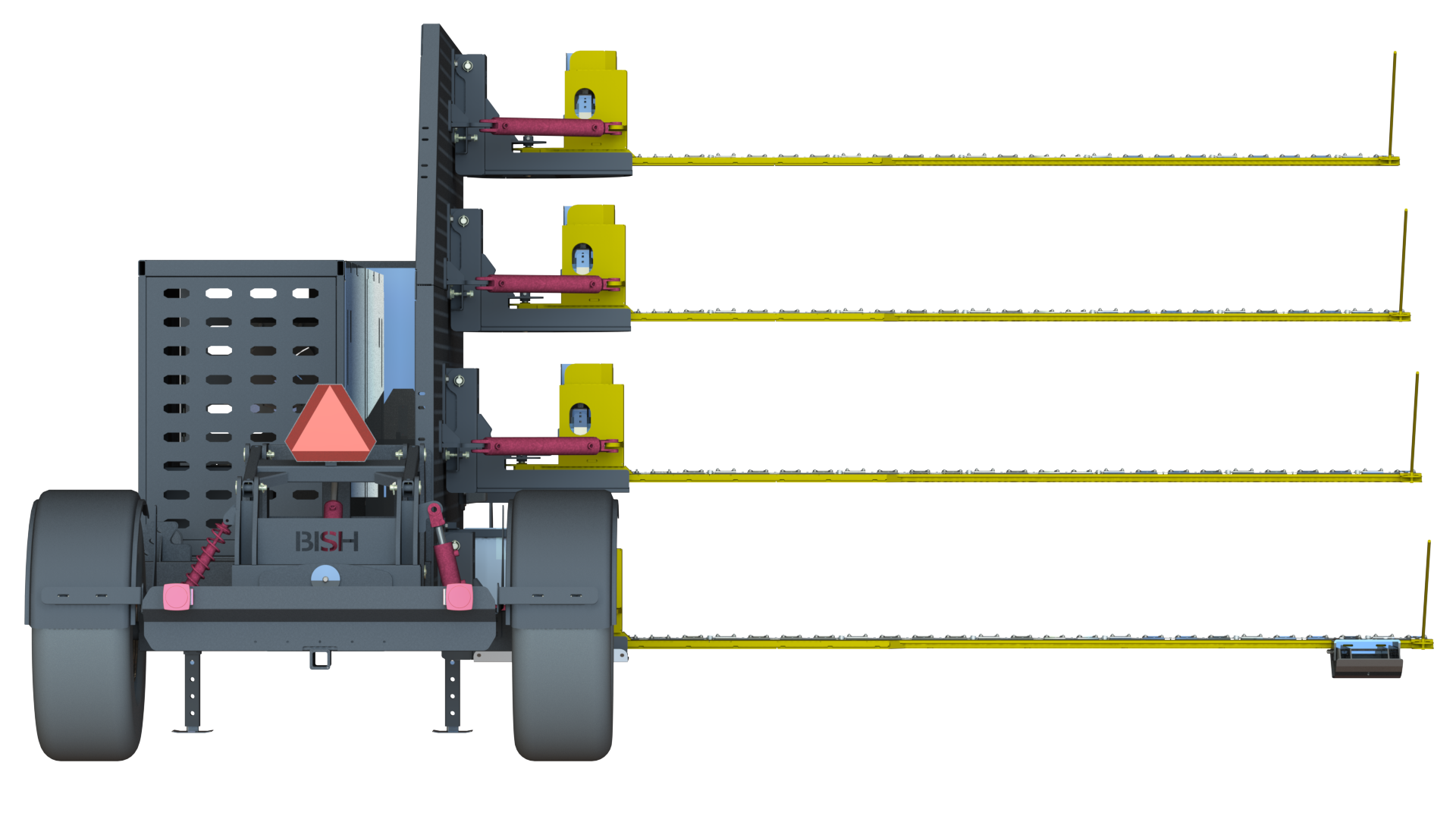

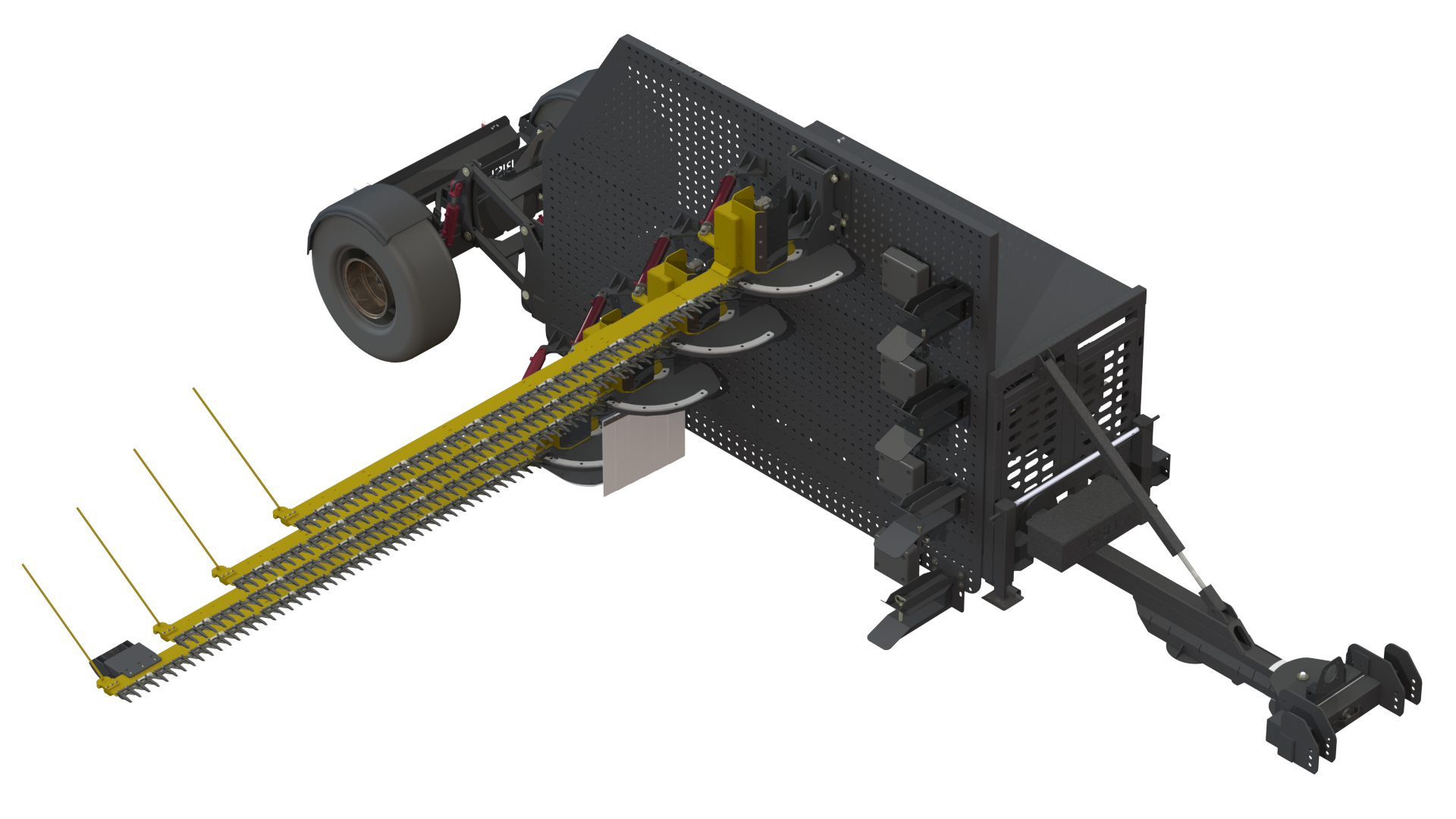

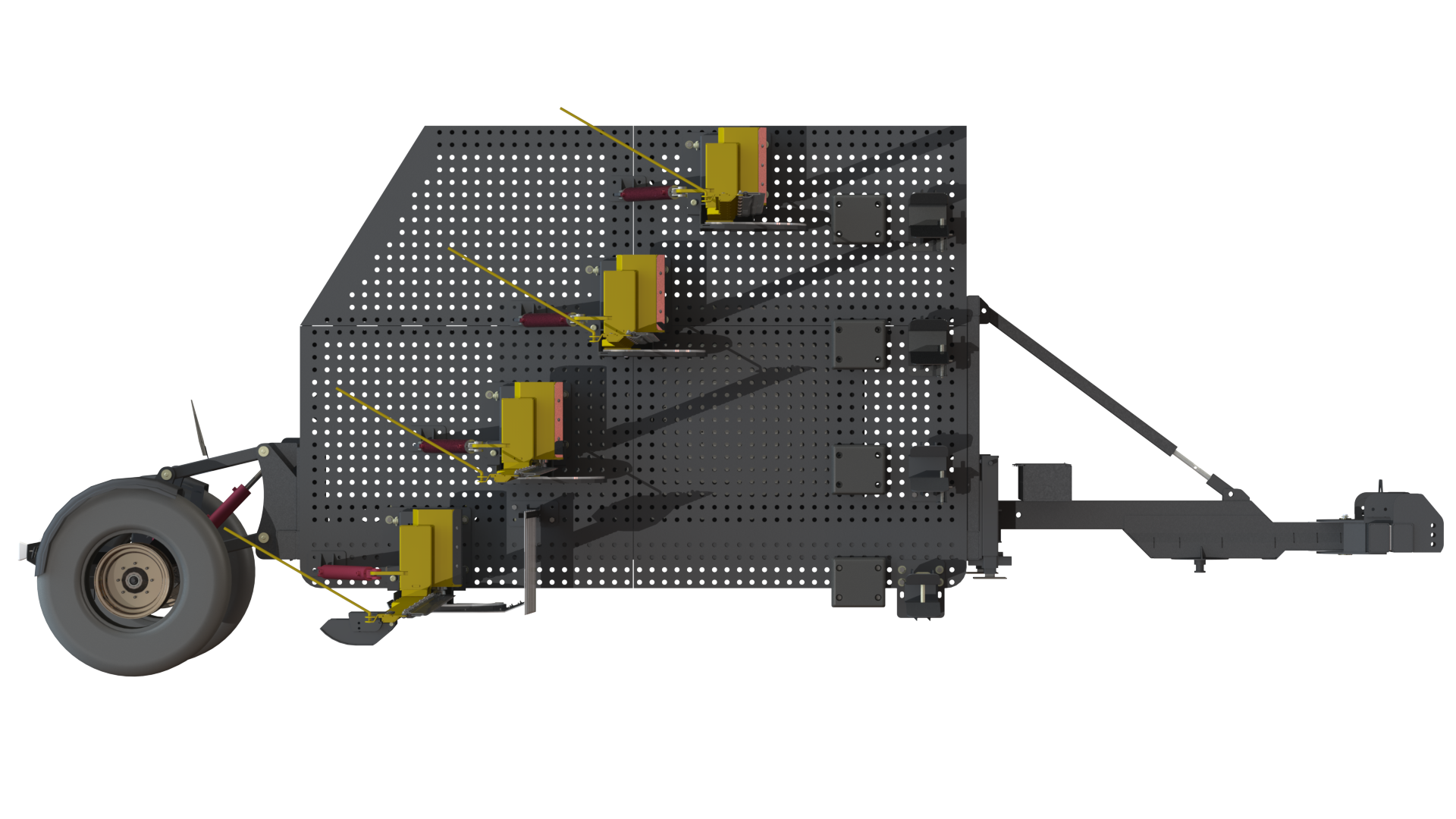

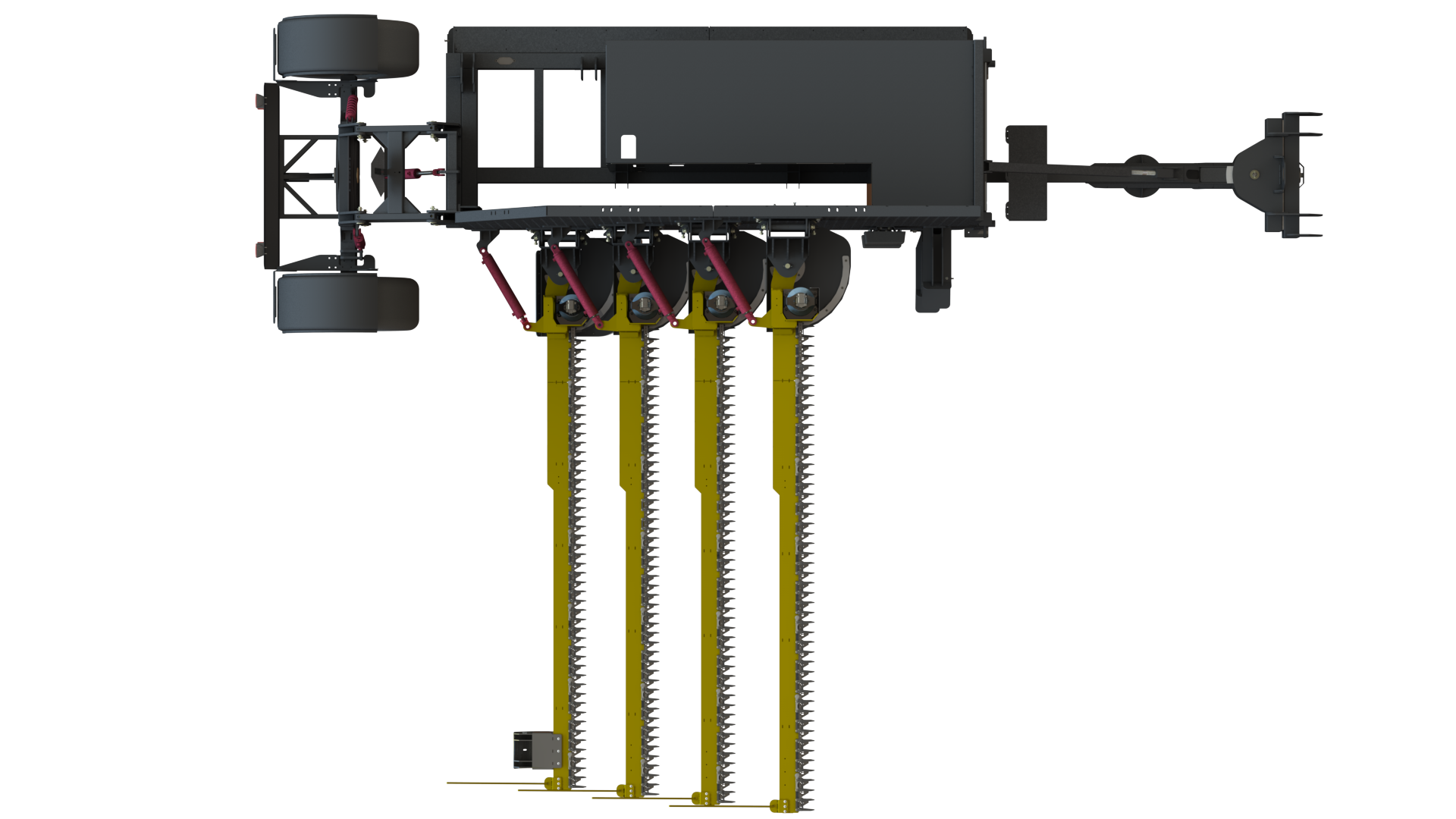

Unfolded
Overall Width: 20’-7 3/4”
Lifted Position
Overall Height: 12’-7 7/8”
Distance of knife edge to ground: 16-1/4”
Horsepower Requirements
4 bar cutters need 140+ hp tractors
3 bar cutters need 120+ hp tractors
2 bar cutters need 100+ hp tractors
1 bar cutter needs 80+ hp tractor
Exception: 1 bar with 6ft need 45+ hp tractors.

PTO Requirements
1000 RPM 21 Spline

Hydraulic Requirements
2-3 bars needs 3 hydraulic banks 1 bar needs 1 hydraulic bank

Electricity
12 vdc
Horsepower Requirements
  • 4 bar cutters need 140+ hp tractors
  • 3 bar cutters need 120+ hp tractors
  • 2 bar cutters need 100+ hp tractors
  • 1 bar cutter needs 80+ hp tractor
Exception: 1 bar with 6ft need 45+ hp tractors.
PTO Requirements
1000 RPM 21 Spline
Hydraulic Requirements
2-3 bars needs 3 hydraulic banks 1 bar needs 1 hydraulic bank
Electricity
12 vdc

Versatility

Unit works on a wide range of tractors and 3-point mount categories. The FiberCut is compatible with category 3 and 4. Both hitches (standard and quick-hitch setups) in its standard configuration, while an optional cat 5-point hitch is available for those that require it. The FiberCut requires less horsepower than competing machines, allowing for a wider range of tractor options available to the operator. We achieve this by powering the unit hydraulically vs mechanically. The lower horsepower requirements reduce operating costs for less fuel consumption and input costs. Unit is built on a modular platform. The FiberCut allows an operator to add remove and adjust the cutting arms of the machine to allow producers to achieve maximum performance with their specific field conditions.

Easy to Find Parts

Bish Enterprises uses quality components and carries all of the needed parts and supplies for the FiberCut, but was designed with both the customers and existing dealers in mind, and most of the components that are used are already available at local dealerships across the United States. Bish Enterprises can overnight parts to most places in the continental US in addition to obtaining them from your local implement dealer.

We Stand Behind Our Products

Bish Enterprises offers its industry leading warranty on every NEW FiberCut sold. Bish Enterprises will provide a parts and labor warranty for the components against all manufacturer defects for a term of 12 months.
