Quad Shaft Industrial Shredders

Quad Shaft Industrial Shredders employ a quartet of counterrotating shafts, rendering them exceptionally suitable for tasks necessitating consistent particle dimensions. Through the incorporation of a sizing screen, these Industrial shredders ensure material recirculation until the desired particle size is achieved. The inclusion of robust hex shafts and hard-faced alloy cutters, available in a range of profiles, further enhances the durability and performance of Quad Shaft Industrial Shredders. Seamlessly integrating with supplementary machinery, these Industrial shredders can be employed to establish comprehensive four shaft Industrial shredding systems, thereby optimizing the processes of waste minimization and separation.

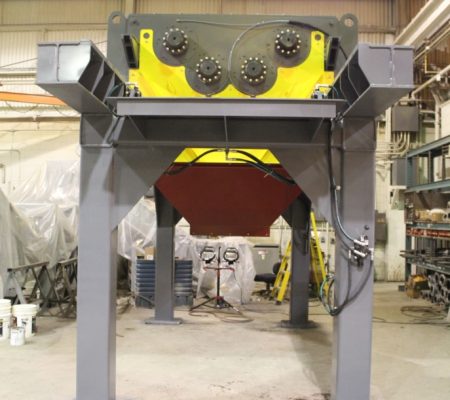

Quad-Shaft-Shredders-250-Horsepower-687x1030

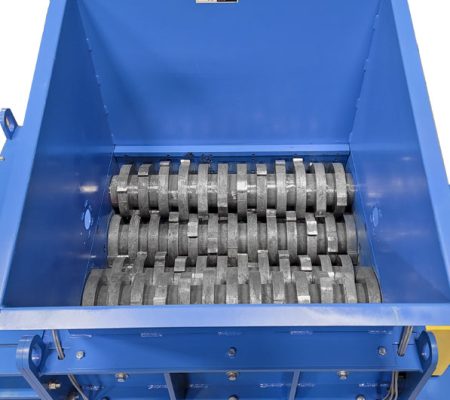

Quad-Shaft-Shredder-Chamber-View (1)

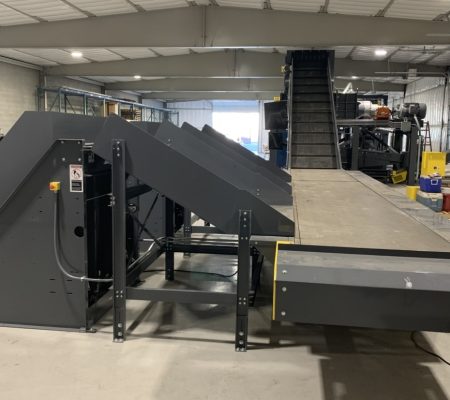

quad-shaft-shredder-feed-conveyor-1030x773

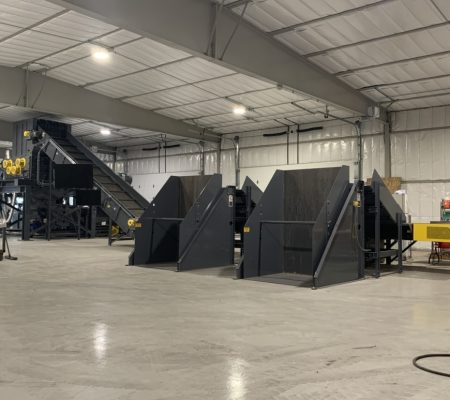

Quad-Shaft-Shredder-Box-Dumpers-1030x773
Equipment Selection

FEATURES

  • Drive: Electric
  • Cutter Material: 4140
  • Inline Planetary Gearbox
  • Overfeed Protection Included
  • Overload Protection Included
  • Contoured screens ensure a uniform particle size
  • Low-speed, high torque design cab handle tough, bulky materials
  • Lower heat and dust generation than high-speed Industrial shredders
  • Removable screens ranging from ½” to 6″ diameter
  • Primary and secondary Industrial shredding capabilities
SPEC
Horsepower
Cutter Width
Cutter Diameter
Shaft Diameter
Cutting Chamber
Weight
QS-30
20 – 40 HP
1.5″ W
9″
4-1/8″
30″ W x 36″ L
4,500 Lbs.
QS-100
80 – 120 HP
2″ W
12″
5-5/8″
38″ W x 38″ L
14,000 Lbs.
QS-250
250 – 400 HP
2″ W
21″
7-7/8″
67″ W x 67″ L
50,000 Lbs.

Quad Shaft Industrial Shredding System Design

Quad Shaft Industrial Shredding Systems are custom built according to each application’s requirements. Everything from the horsepower to the cutter profile, from the shaft diameter to the cutting chamber size, is engineered to provide the required throughput. Contact an Industrial Shredders sales engineer for more information and sizing assistance for your four shaft Industrial shredders.
